LINETX LX9
Media Lighting Server
An all-in-one professional media lighting sync controller integrating lighting control, audio output, video playback, and remote management. Ideal for stage performances, night tours, and sports venues.
LX9 Series Controller
The LX9 Media Lighting Server is a versatile lighting and multimedia master controller developed by LINETX Technology. Powered by a quad-core domestic CPU with dual Gigabit 1000M Ethernet ports and audio/video interfaces, it delivers exceptional performance for a wide range of lighting control applications.
Featuring 8–16 fully magnetically isolated DMX512 ports with full RDM support across all ports. Working with LINETX LnxEffect software, it synchronizes lighting, audio, and video through timeline editing for stunning audio-visual experiences.
Supports ArtNet-4 protocol for data recording and playback from lighting consoles or software. Capable of controlling LNX-6xx series relay switches for synchronized electrical load management.
Download User ManualThree Models · Flexible Solutions
The LX9 series offers LX9-U rack-mount, LX9-H and LX9-HP box-style models to suit different installation scenarios.
LX9-U
2U Standard Rack Mount · Professional Installation
- 8 Fully Isolated DMX512 XLR Ports
- 2U Standard 19" Rack Design (430×89.5×153mm)
- 100-240VAC Wide-range AC Power Supply
- 2.8" LCD High-Definition Display
- 1 RS485 Control Interface
- Dual Gigabit Ethernet · HDMI · USB3.0×2
LX9-H
Compact Box Design · High DMX Output
- 8 Fully Isolated DMX512 Phoenix Terminal Ports
- Compact Box Design (172×166×53mm)
- 12V DC Power Supply · Low Power 12W
- 1.3" OLED High-Definition Display
- WiFi 802.11 b/g/n Wireless Network
- Dual Gigabit Ethernet · HDMI · USB3.0×2
LX9-HP
Compact Box Design · High-Density Output
- 16 Fully Isolated DMX512 Phoenix Terminal Ports
- Compact Box Design (172×166×53mm)
- 12V DC Power Supply · Low Power 12W
- 1.3" OLED High-Definition Display
- WiFi 802.11 b/g/n Wireless Network
- Dual Gigabit Ethernet · HDMI · USB3.0×2
Rich Feature Set
The LX9 Media Lighting Server integrates a comprehensive set of features for all lighting/multimedia control applications.
DMX512 Controller
Supports DMX512 protocol output for direct control of LED fixtures, moving heads, and pixel lights with 8–16 fully isolated ports for stable signal transmission.
Multi-Protocol Support
Supports DMX512, ArtNet-4, sACN, RDM, and UDP protocols for flexible integration with various lighting systems and broad compatibility.
Media Player
Supports MP3 audio and MP4 video file playback with HDMI video output, synchronized with lighting effects for stunning audio-visual shows.
CUE Recording
Record ArtNet data from external lighting consoles or software, save as local CUE files for playback in light shows, easily reproducing professional effects.
Playback Schedule
Schedule light shows by day of week, date, specific time, or sunrise/sunset for fully automated unattended playback.
Audio Trigger
Audio signal triggers light show playback for sound-activated lighting effects, enabling interactive lighting experiences.
WEB Management
Modern Vue 3 + Element Plus WEB management interface with 5 language support: Chinese, English, Russian, Japanese, Spanish.
Cloud Platform
Connect to the cloud platform for remote management and real-time device status monitoring from anywhere.
Built-in Effect Editor
Create lighting effects directly from the WEB management interface - configure gradient curves, color changes, and more without additional tools.
System Core Role
LX9 serves as the control host, connecting upstream to control PCs, consoles, or LnxEffect software, and downstream to audio, video, and various sub-controllers.
- LX9 acts as the control system host, connecting upstream to control PCs, consoles, or LnxEffect, and downstream to audio, video, and sub-controller devices.
- LX9 features a complete set of integration commands for integration with central control systems.
- Supports data recording from lighting consoles or software such as MADRIX, MADMAPPER, and ARENA.
- Features 8–16 DMX512 isolated output interfaces for direct connection to DMX512 fixtures.
- Dual Gigabit Ethernet ports for connecting LINETX sub-controllers including LNX-378, LNX-370SP, LNX-377XP for expanded output domains.
Professional Applications
The LX9 Media Lighting Server is widely applicable across various lighting control scenarios.
Stage Performance
Synchronizes stage lighting, audio, and video projection with real-time ArtNet input and pre-programmed light show playback for professional productions.
Night Tours & Stage
Automated light show playback scheduled by sunrise/sunset for scenic spots, parks, and building facades in nighttime tourism projects.
Entertainment Venues
Bars, KTV, and nightclubs achieve perfect music-light synchronization with dynamic atmosphere control for immersive experiences.
Sports Stadiums
Control venue lighting, large screens, and sound systems synchronized with event节奏 to enhance audience experience.
LX9-U Detailed Specifications
2U standard rack-mount design with 8 isolated DMX512 XLR ports for professional stage and fixed installation.
| Parameter | Specification |
|---|---|
| Control Protocols | ARTNET, sACN, UDP, RS485 |
| Lighting Interface | 8 Isolated DMX512 (XLR 3-pin) |
| Device Ports | 1000M Ethernet × 2, 3.5mm Audio Out, MIC In, USB3.0 × 2, HDMI, RS485 |
| Display | 2.8" LCD Display |
| Cable Requirements | Cat6, Cat5e or better |
| Wireless | WiFi 802.11 b/g/n |
| AC Power | 100-240VAC 0.35A 50/60Hz |
| Rated Power | 10W |
| Operating Temperature | -10~60℃ |
| Operating Humidity | 5%~60% |
| MTBF | 100,000 hours |
| Storage Temperature | -40~70℃ |
| Storage Humidity | 5%~90% non-condensing |
| Dimensions | 430 × 89.5 × 153 mm |
LX9-H Detailed Specifications
Compact box design with 8 isolated DMX512 Phoenix terminal ports for portable DMX output applications.
| Parameter | Specification |
|---|---|
| Control Protocols | ARTNET, sACN, UDP |
| Lighting Interface | 8 Isolated DMX512 (Phoenix Terminal) |
| Device Ports | 1000M Ethernet × 2, 3.5mm Audio Out, MIC In, USB3.0 × 2, HDMI |
| Display | 1.3" OLED Display |
| Cable Requirements | Cat6, Cat5e or better |
| Wireless | WiFi 802.11 b/g/n |
| DC Power | 12V DC / 1A |
| Rated Power | 12W |
| Operating Temperature | -10~60℃ |
| Operating Humidity | 5%~60% |
| MTBF | 100,000 hours |
| Storage Temperature | -40~70℃ |
| Storage Humidity | 5%~90% non-condensing |
| Dimensions | 172 × 166 × 53 mm |
LX9-HP Detailed Specifications
Compact box design with 16 isolated DMX512 Phoenix terminal ports for high-density DMX output applications.
| Parameter | Specification |
|---|---|
| Control Protocols | ARTNET, sACN, UDP |
| Lighting Interface | 16 Isolated DMX512 (Phoenix Terminal) |
| Device Ports | 1000M Ethernet × 2, 3.5mm Audio Out, MIC In, USB3.0 × 2, HDMI |
| Display | 1.3" OLED Display |
| Cable Requirements | Cat6, Cat5e or better |
| Wireless | WiFi 802.11 b/g/n |
| DC Power | 12V DC / 1A |
| Rated Power | 12W |
| Operating Temperature | -10~60℃ |
| Operating Humidity | 5%~60% |
| MTBF | 100,000 hours |
| Storage Temperature | -40~70℃ |
| Storage Humidity | 5%~90% non-condensing |
| Dimensions | 172 × 166 × 53 mm |

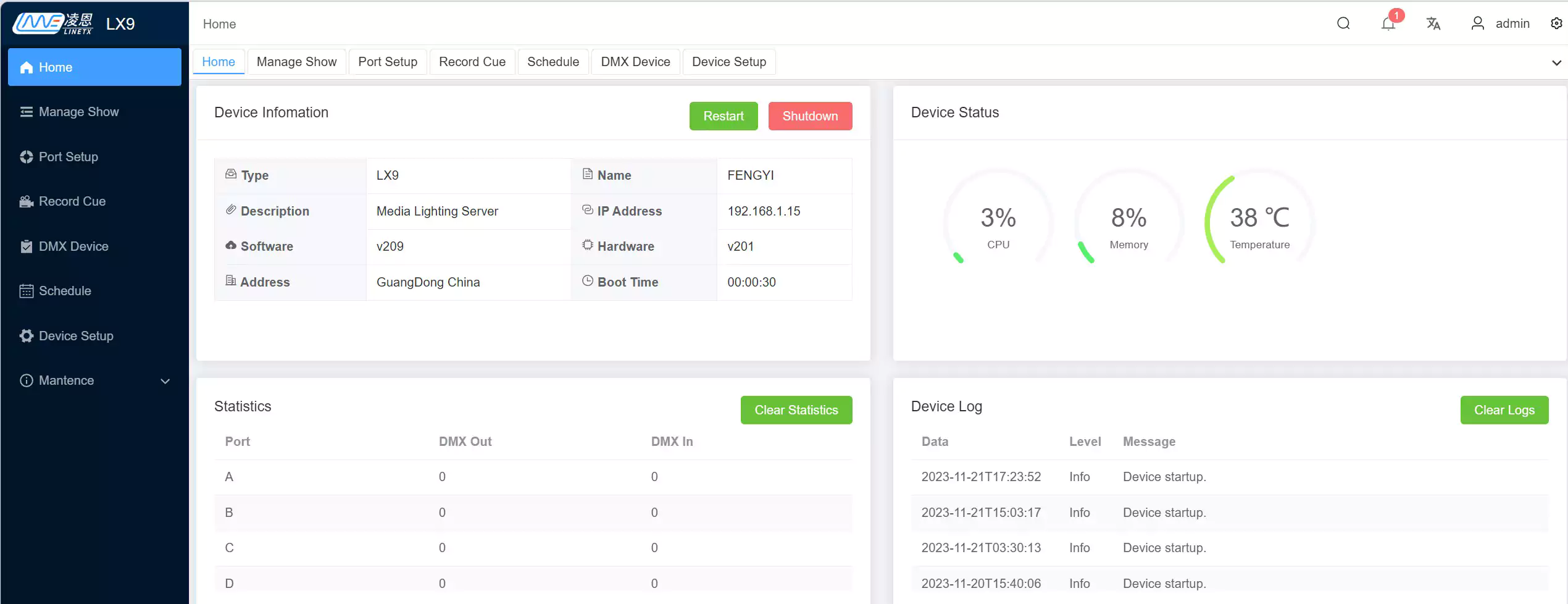

Powerful WEB Admin Panel
LX9 features a modern WEB management system built with Vue 3 + Element Plus, supporting Chinese, English, Russian, Japanese, and Spanish. Access and manage your device remotely from any computer or mobile browser.
Mobile Ready
Access from phone/tabletPort Config / RDM
DMX & ArtNet settingsStatus Monitor
Temp & network load
